Alembic Distilling System

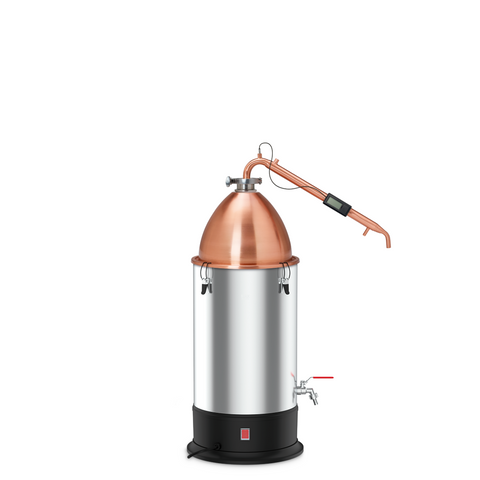

The Create+ Alembic Copper Dome, Condenser, and Boiler 25 L bundle are the ultimate alembic distilling set up, designed to produce high quality distilled water, hydrosols, and flavoursome spirits such as whiskey, rum, bourbon, and gin.

The Alembic Copper Condenser features a 2" tri-clamp connection, and the dome comes with a 2" tri-clamp to DN40 Threaded Adapter for easy connection to 2" tri-clamp accessories, providing the ability to trial different distilling configurations.

The Alembic Condenser is also compatible with the Grainfather Alembic Condenser Attachment Kit and Distilling Lid, it can convert a G40 or G70 into a Pot Still, making it suitable for distilling larger batches of all-grain spirits.

NOTE: The Create+ Boiler 25 L, Alembic Copper Dome and Alembic Copper Condenser are sold separately.

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

Dome & Condenser:
• For intermediate-advanced distilling
• Made from Copper
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for distilling water, hydrosols, and flavourful spirits
• Kitchen, laundry and garden tap adapters for ease of cooling water connection

Boiler:
• Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
• Designed in New Zealand
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity
• Connects to 2" tri-clamp distilling accessories
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

• Ease of Use: Intermediate to advanced
• Average water use during distillation: You will use approx. 150 L (39 US Gal) per hour.*
• Approx Yield: 3.5-7 L (0.9-1.8 US Gal) of 40% ABV alcohol*
• Purity: Distills at up to 70% ABV (140 US proof)*
Warranty Period: 3 Years
* Per 25 L (6.6 US Gal) wash (varies based on wash ingredients/volume) using the Create+ Boiler 25 L, Alembic Copper Dome & Condenser.

• Create+ Alembic Copper Condenser
• Create+ 2" Tri-Clamp (includes silicone gasket)
• Digital Thermometer with mounting bracket
• 2 x Cooling Water Tubes
• Silicone Distillate Tube
• Kitchen, Garden and Laundry Tap Adapters
• Create+ Alembic Copper Dome
• 2" Tri-Clamp to DN40 Threaded Adapter (includes silicone gasket and DN40 Nut)
• Create+ Boiler 25 L
• Create+ Boiler Lid
• 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
• Instructions
